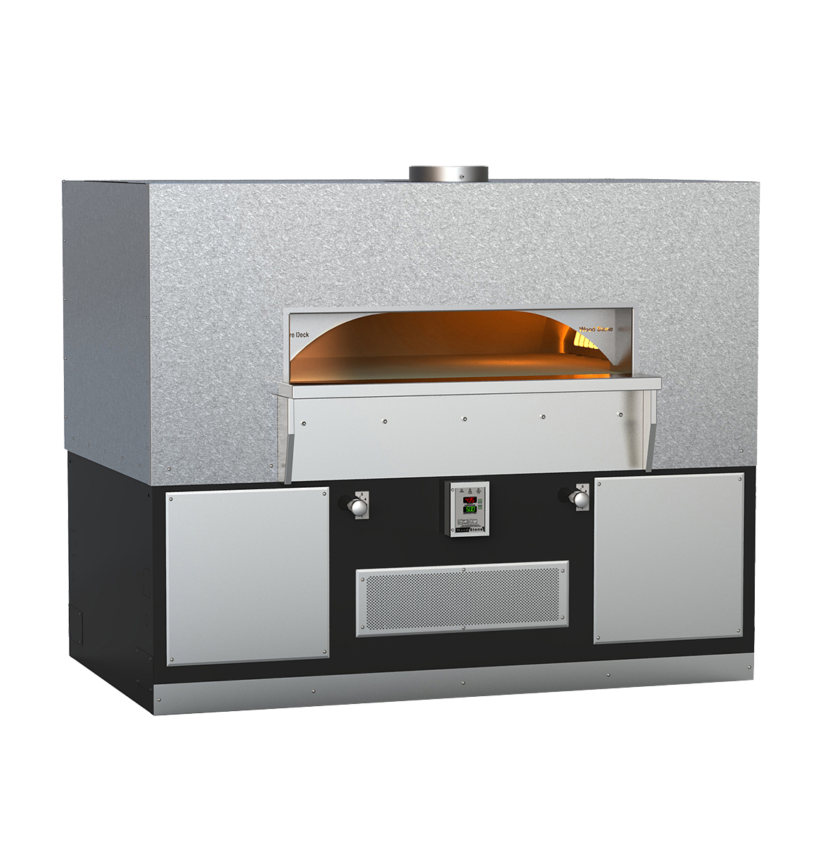

From Wood Stone’s most powerful line comes the Fire Deck 9660. Available with radiant gas flames, wood-fired, or a combination, the Fire Deck 9660 is a fast-casual favorite and is equipped with an underfloor infrared burner to maintain temperature under the pressure of even the heaviest production cycles.
From Wood Stone’s most powerful line comes the Fire Deck 9660. Available with radiant gas flames, wood-fired, or a combination, the Fire Deck 9660 is equipped with an underfloor infrared burner to maintain temperature under the pressure of even the heaviest production cycles. The 54-inch wide doorway and rectangular, 22-square-foot cooking surface make operation and rotation simple. The Fire Deck 9660 has a theatrical visual appeal, with spectacular views of the live fire in the chamber and a familiar, classically American aesthetic. Built in the USA to last, the Fire Deck 9660 arrives fully assembled and ready to install. Favored by leaders in the emerging QSR pizza scene, the Fire Deck 9660 has the muscle and consistency required by ultra-high volume restaurants – the Fire Deck 9660 is a serious workhorse.

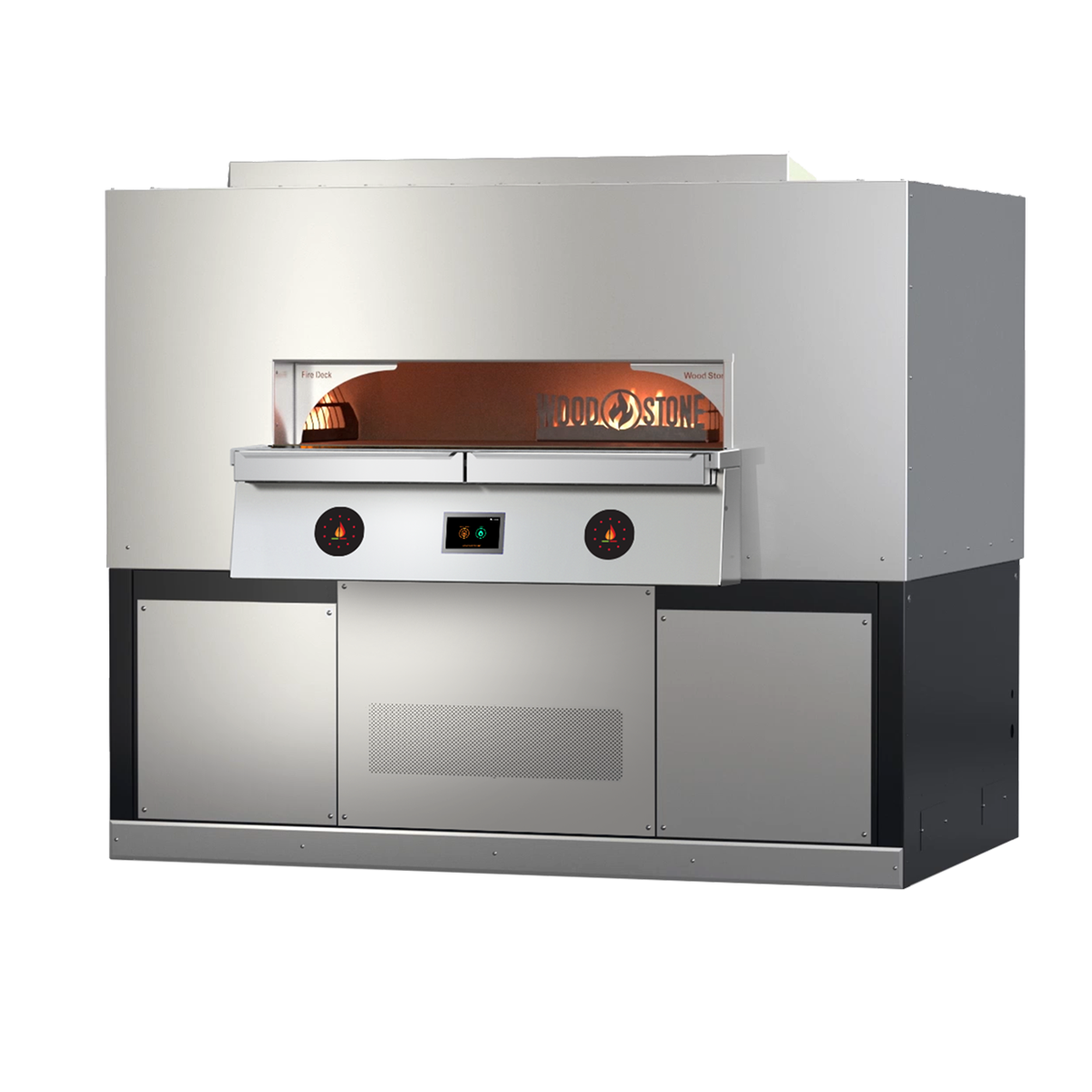

LOOKING FOR OUR FIRE DECK AUTOMATIC 9660? Click here
|8" PIZZAS||10" PIZZAS||12" PIZZAS||16" PIZZAS||18" PIZZAS||20" PIZZAS|
|Fire Deck 6045||16||10||6||4||n/a||n/a|
|Fire Deck 8645||20||14||10||5-6||n/a||n/a|
|Fire Deck 9660||40||24||15||8||n/a||n/a|
|Fire Deck 9690||60||40||25||16||12||9|
|Fire Deck 11260||50||32||18||10||8||6|
|Fire Deck 11275||67||50||27||14||12||12|
|Fire Deck 11290||75||55||35||20||16||12|
|Fire Deck 90112||74||51||35||19||12||n/a|

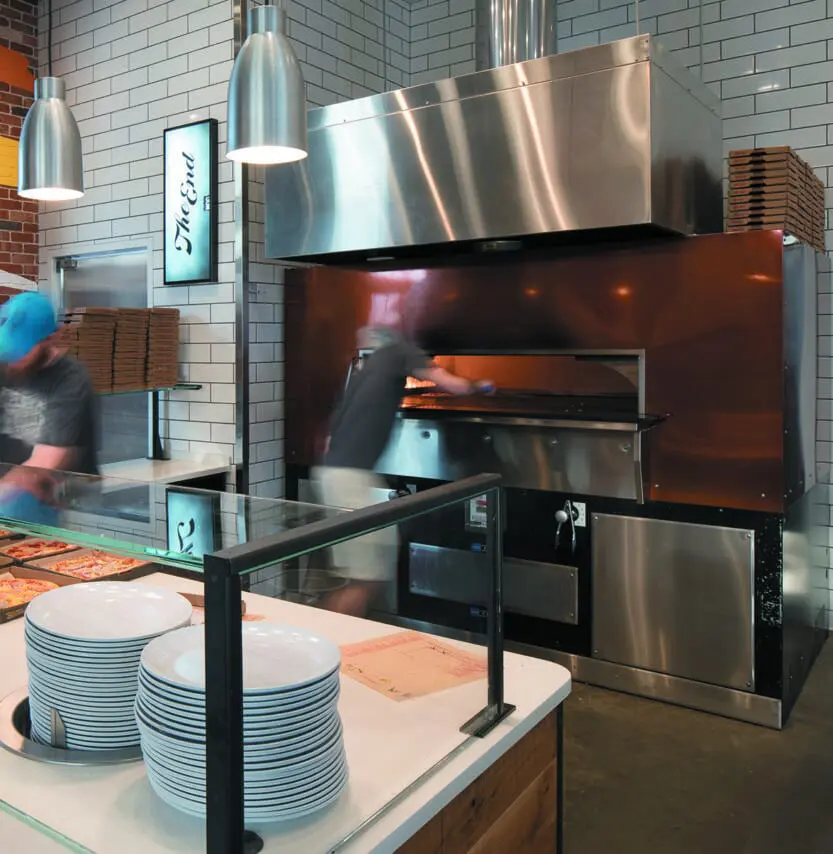

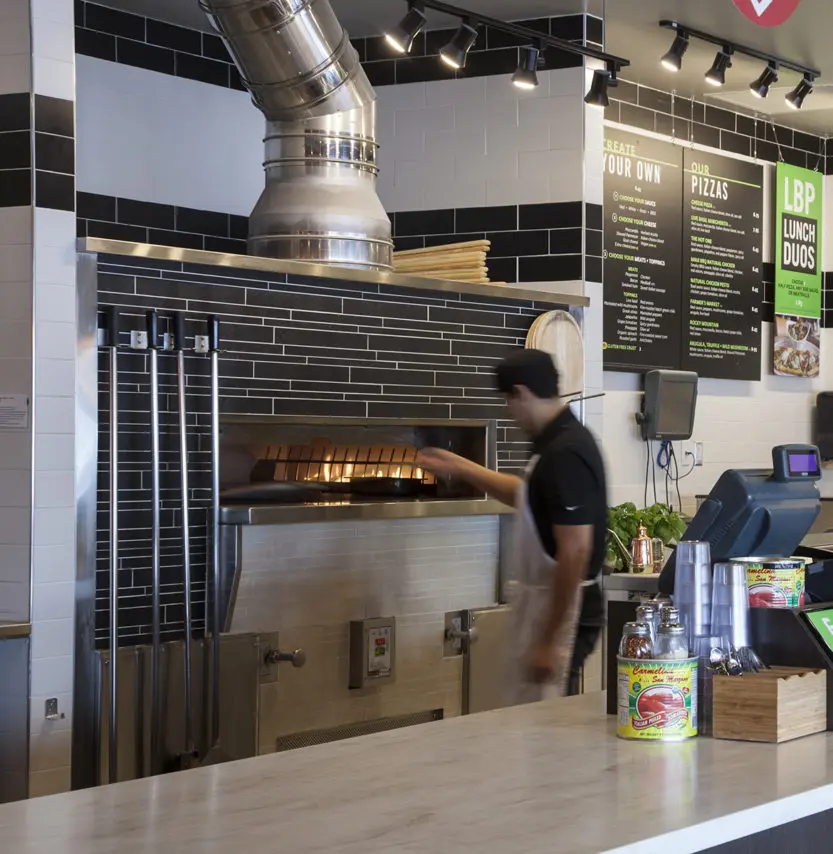

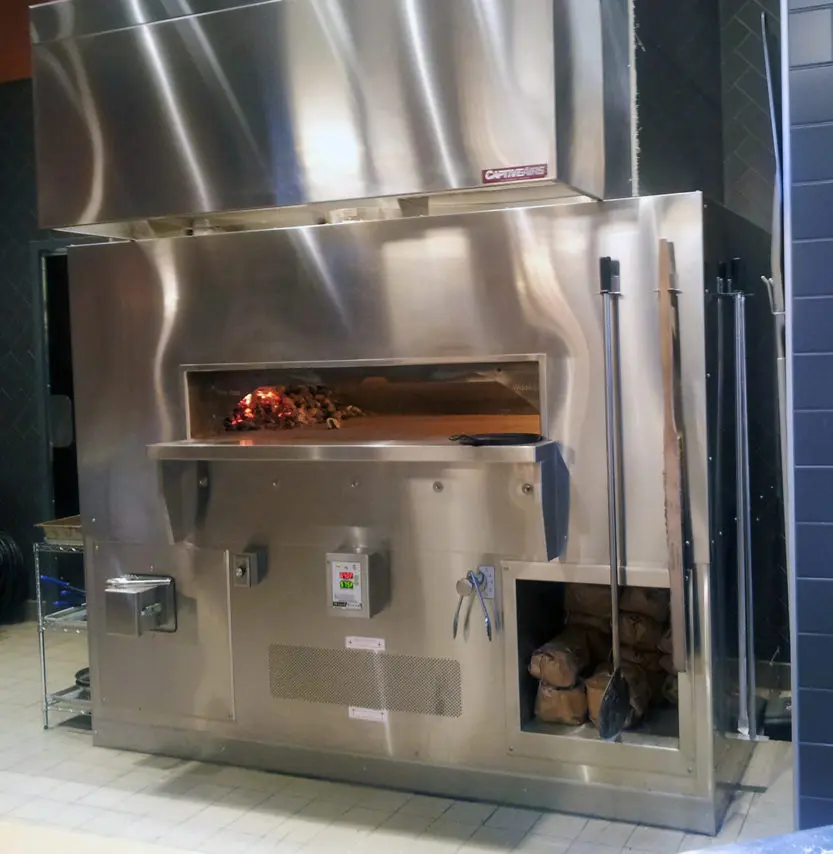

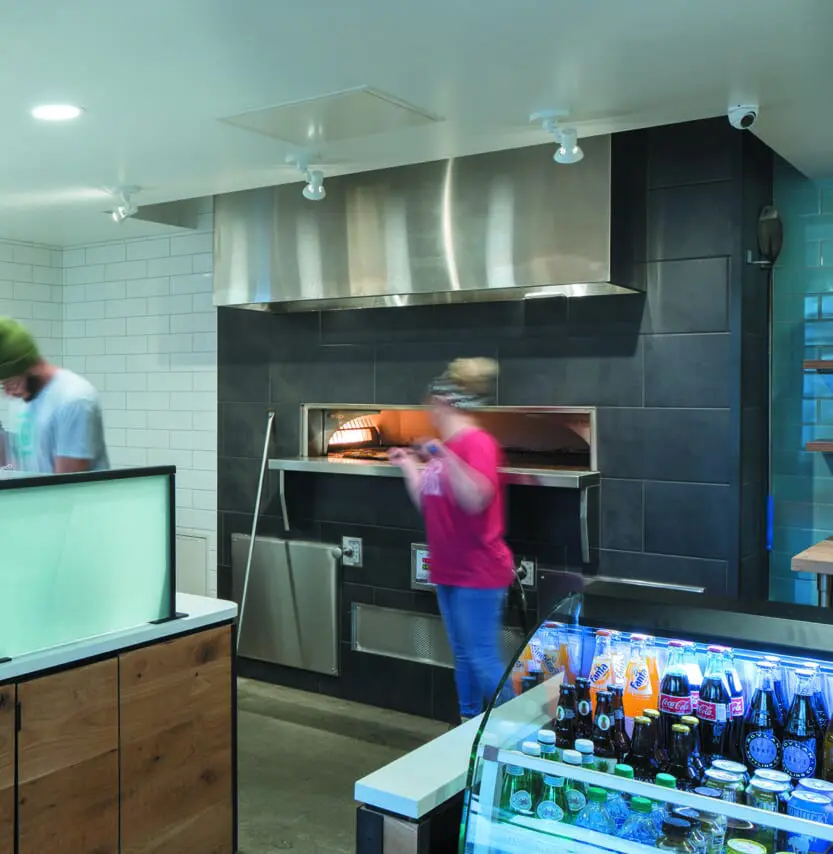

Visit our installation gallery including all oven lines and facade types.Start Viewing
Find not only our Fire Deck Series Overview and Best Practices playlist, but also installation, cooking and maintenance videos on our YouTube channel.Start Watching
Moving a Wood Stone oven can present interesting challenges to even the most experienced riggers. Take your time, use your head, secure the proper equipment and make safety your first priority. Don’t hesitate to call the factory for technical support 24/7 at 800.988.8103.Unloading & Moving
This information is provided to assist in safe and functional installation of Wood Stone Fire Deck ovens. Above all, the oven must be installed in accordance with all relevant local and national codes, and in a manner acceptable to the authority having jurisdiction. We recommend our Fire Deck ovens be moved/installed using a forklift, pallet jack, or crane. Please visit our Oven Design & Installation page for additional details.Oven Design & Installation
For technical service and support, please use the form below or call 360.650.1111 to speak with someone on our team 24 hours a day, 7 days a week.Service Request Form
We’ve curated a small collection of our most requested recipes to share. From our famed West Coast Dough to our delectable Chocolate Gourmandize, this collection covers all of your favorites.Start Cooking

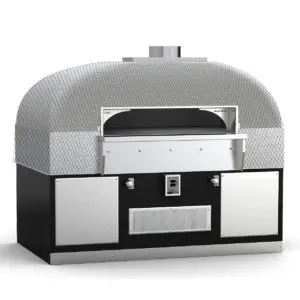

Our ovens are available in a number of custom finishes including custom color powder coat, stucco-ready and facade-ready.
The design of the Fire Deck oven lends itself to a number of facade possibilities. Use the link below to view instructions on how to facade a Wood Stone Fire Deck Series oven.

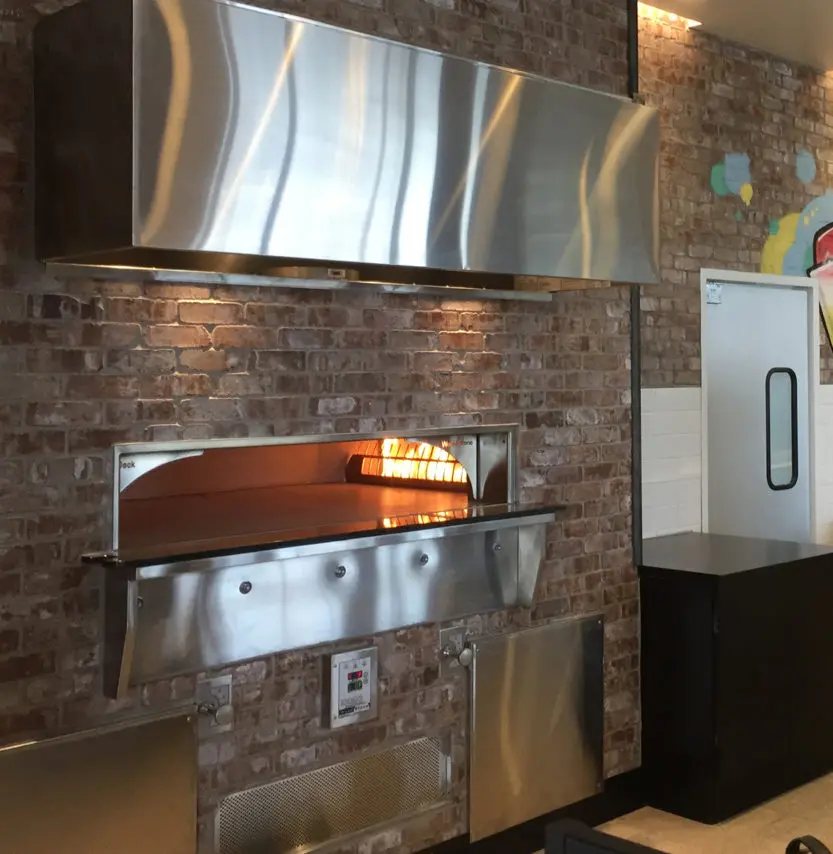

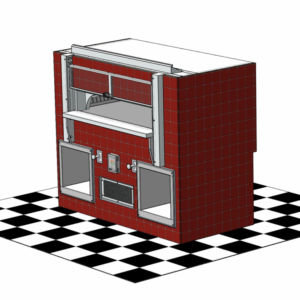

1. Direct-On-Oven Installation

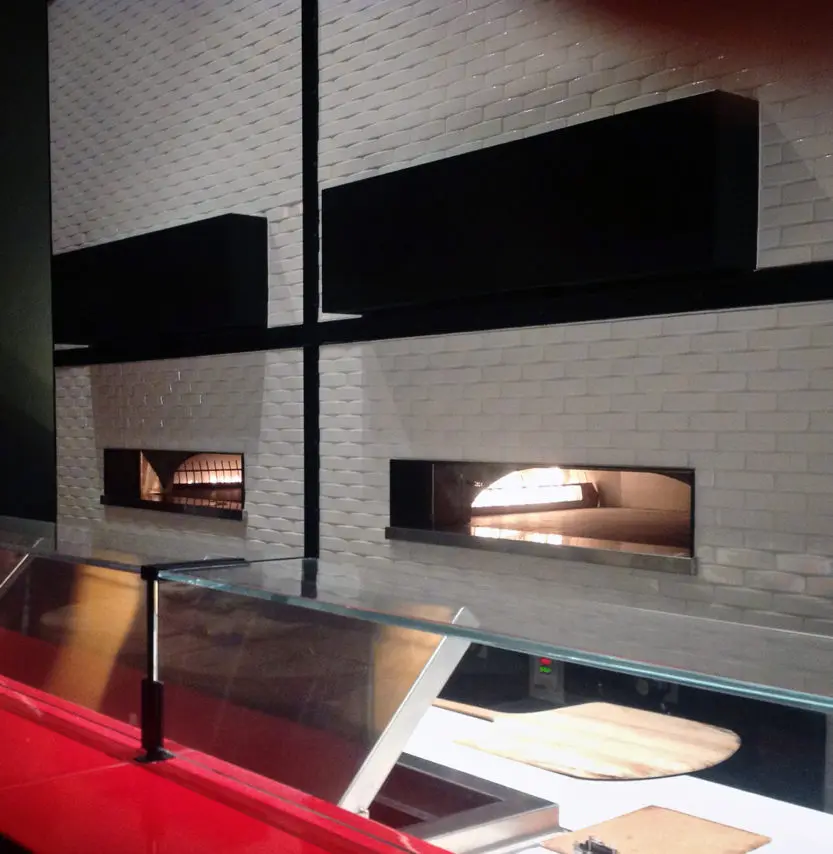

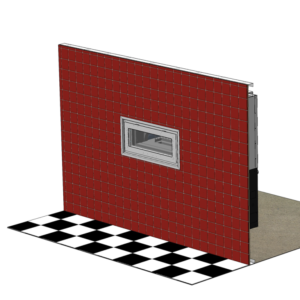

2. Flat Wall w/Air-Cooled Viewing Window
Wood Stone’s Storage Box is constructed of stainless steel. It slides easily into the oven stand and is easily removable for service access. The installed box rests on the oven stand, and the face of the box is flush to the base of the stand. Storage boxes for the WS-FD-6045, 8645, 9660 and 11260 can accommodate the stainless steel Sheet Pan Rack for Storage Boxes. The unit slides into the Storage Box securely without additional hardware. The rack holds four standard 18 x 26″ sheet pans.
Sheet Pan Rack for Storage Boxes
|For All Above||000-FD-RACK|
Wood Stone offers a safe and attractive viewing window option for most of our ovens. The Air-Cooled Viewing Window (45.48″ W x 21.85″ H) incorporates a multi-layer design that helps to cool the outer glass surface. The viewing window assembly allows for the installation of a facade wall, by others, in a similar fashion to our other facade extension options. The durable and heat resistant ceramic-glass sections can be removed for cleaning. While the temperatures found on the outer surface will usually be safe enough to touch, we do recommend that the oven be installed in such a manner that the window is not located where it is within easy reach of curious customers. Also, it’s important to be aware that there is an approximate loss of 10-15% in production with adding the Air-Cooled Viewing Window. Note: This option is not recommended for ovens burning solid fuel due to potential sooting issues encountered on the glass with wood burning applications.
CAUTION: The Air-Cooled Viewing Window is designed to provide a window assembly that is much cooler than the oven internal temperature. However, be aware that when in operation, temperatures on the external glass and frame can range from 120 °F to nearly 200 °F. Surfaces above 140 °F can cause burns. A Wood Stone oven is a high temperature commercial appliance. Care should be taken when designing an installation utilizing a Viewing Window to minimize the opportunity for anyone to directly contact the Viewing Window glass or frame while the oven is in operation or hot. In many cases a barrier (by others) will be necessary to ensure a safe installation.
Wood Stone offers Double Door options on Fire Deck Series and Mountain Series ovens.

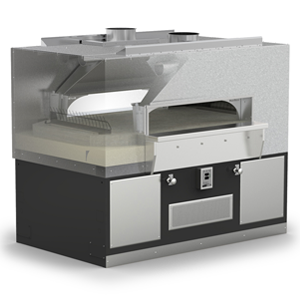

With the Double Door option, access is available from both the front and the rear of select Fire Deck ovens. Adding a second doorway can change the efficiency and production capacity of your oven. For more information, contact the Wood Stone Culinary Team. On Fire Deck 9660 and larger models, the second doorway can mirror the size of the “control door” (where the oven controls are located). Alternatively, a smaller 30″ second operational doorway is available to reduce heat loss.

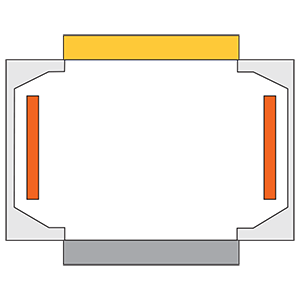

The illustration on the left is a multiple doorway configuration for a number of Fire Deck Series ovens. The gray mantel represents the “control door” side, where the oven controls are located. The yellow mantel represents a vented, functioning doorway with mantel. The orange bars represent radiant burner positions for gas-fired configurations.
With multiple doorways, each must be vented in accordance with all relevant local and national codes, and in a manner acceptable to the authority having jurisdiction.
Add more beautiful visual flare to your Fire Deck oven with the optional Decorative Flame Burner.
Standard Fire Deck Series models are available in a variety of burner and fuel configurations. The standard unit has flame locations on one or both side ends of the unit, as well as a thermostatically controlled Underfloor IR burner beneath the oven deck. The Decorative Flame burner is located in the center rear of the oven, and adds a direct front-facing visual flame.
The Decorative Flame measures 20″ long and 5″ deep. For custom series Fire Decks equipped with a Decorative Flame Burner, the Decorative Flame turns on automatically when the oven controller is turned on.
Decorative Flames are available for all Fire Deck sizes and are available in natural gas and propane configurations. Note: Adding a Decorative Flame to an oven will slightly reduce available hearth capacity.
Make sure to add the Decorative Flame to your Fire Deck 6045 or 8645 at time of order as they must be fitted at the factory. Other Fire Deck models made after 2008 can be retrofitted in the field to include a Decorative Flame.

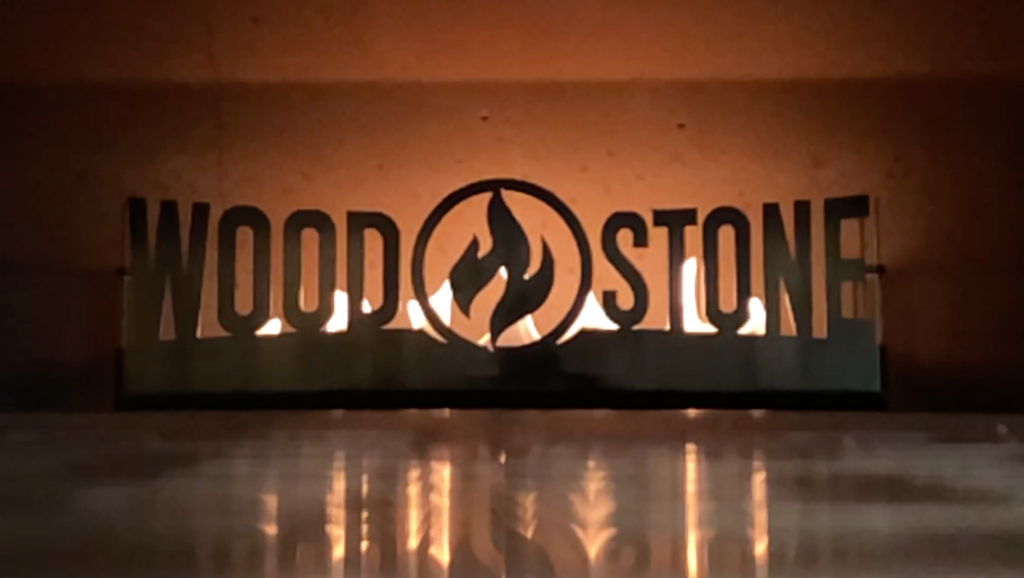

Note: We can also personalize your oven by creating a Custom Decorative Flame Guard. Contact us to learn more!

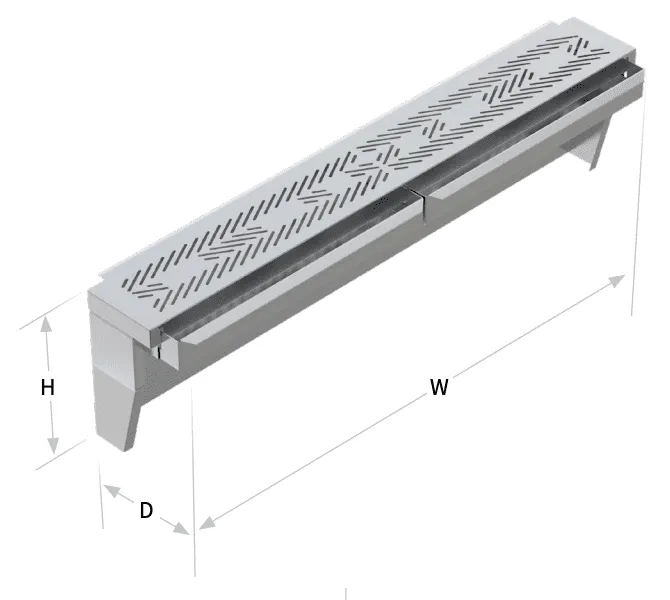

Wood Stone’s new patent-pending Debris Mantel is designed for easy crumb and debris collection. Keep your burners clear by collecting debris in conveniently removable trays. Slide the trays out for easy emptying and wash them in any standard commercial dishwasher. Our Debris Mantel helps you maintain a clean cooking surface by offering a convenient receptacle to collect excess buildup on the floor. With a quick sweep using your Wood Stone brush, you can now keep the debris to a minimum and your radiant burners clear.

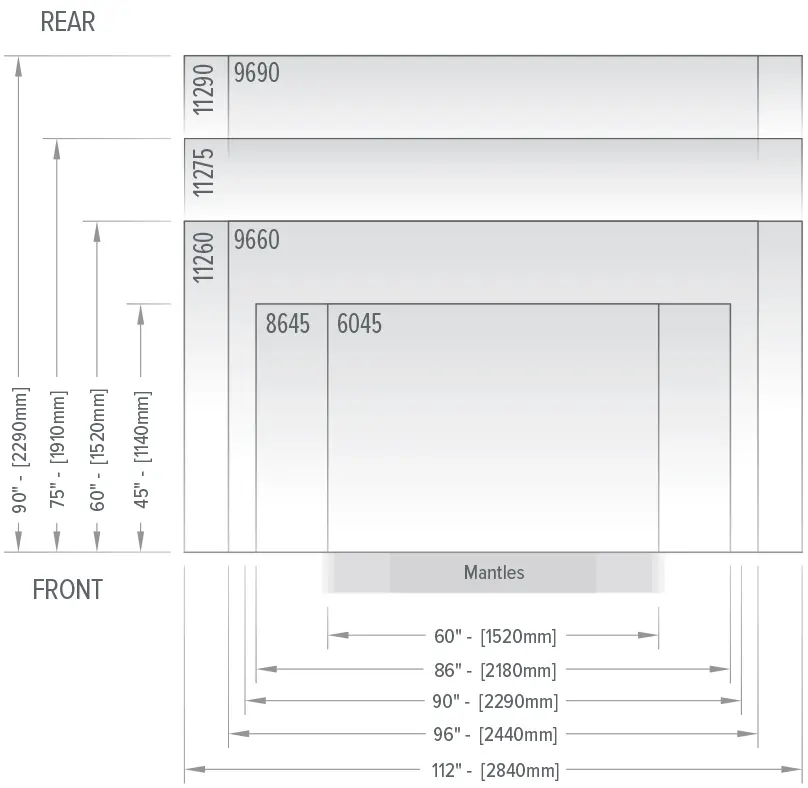

|Fire Deck Series||H||W||D|
For a detailed explanation of what makes Wood Stone special, please view our points of difference.
The gas usage will vary greatly depending on your oven model, fuel type, usage, and even what you are cooking. However, as a reference point, a WS-MS-5-RFG-IR using natural gas rated at 188,000 BTU/hr (1.88therms/hr) with a temperature range of 550F-600F (285C-315C), with two hours of heat up time and four hours of cooking, might average around 675,000 BTU daily (6.75 therms/day or 1.125 therms/hr).
For more detailed information, check out the Average Gas Consumption page.
Countless blind taste tests have confirmed for us that there is little appreciable difference in flavor. In our opinion, it is open flame (of any kind) and the stone itself that create the wonderful flavor profiles that have long been associated with wood fire. However, the theater and marketing power of a live wood fire cannot be underestimated.
You can reach our service team 24/7 by calling 800.988.8103. During office hours, you can also reach us at 360.650.1111.
During the Warranty period, you must contact Wood Stone directly for service. We will arrange for service with one of our authorized service agents. After the warranty period, you are free to utilize whichever service agency you prefer.
Parts can be ordered directly from Wood Stone by calling 800.988.8103. You can also purchase service parts at PartsTown.
Wood Stone tools and accessories can be purchased from any of our authorized dealers. You can also purchase direct from the factory, via our shopify store or by calling us directly at 800.988.8103.
Wood Stone equipment is usually built to order. For a price quote or lead time estimate, please request a quote through a restaurant equipment dealer.
Wood Stone does not sell equipment directly to end users. Our products are available through restaurant equipment dealers. If you are not currently working with a dealer, please contact the Wood Stone factory representative closest to you, and they will introduce you to one. Call us at 800.988.8103 with questions.
